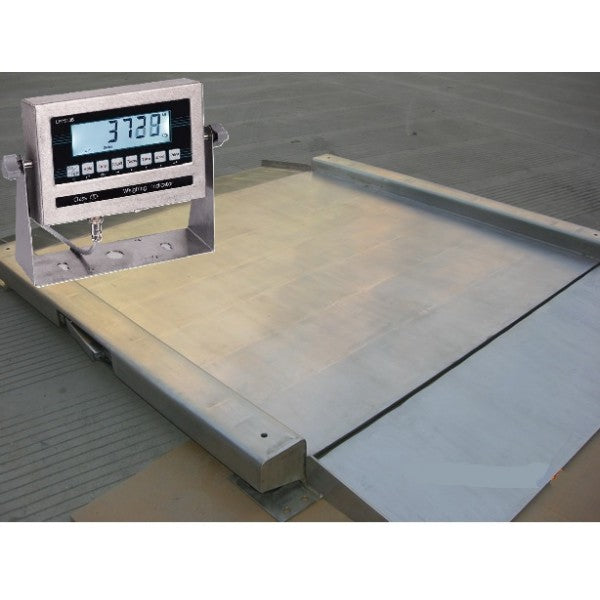

LP7622 Stainless Steel Walkthrough Platform LP7510SS indicator 1500mm x 1500mm

LP7622 Stainless Steel Platform Scale Walkthrough with LP7510SS Stainless Steel Indicator (Fitted as standard)

Platform Size is 1500mm x 1500mm and Capacities from 500kg to 2000kg

500kg x 200g
1000kg x 500g
2000kg x 1kg

The LP7510 indicator is the standard indicator that is included with the pallet scale bases, weigh beams and U-frame pallet weighers.

Fabricated in mild steel or stainless steel housing.

Please contact sales team for a quote if stainless steel is required.

Features include:

Platform

• Walk/drive through stainless steel low profile scale with side protection safety bars and 2 ramps
• Platform Colour is Stainless Steel
• Dimensions (Weighing Area): 1500mm x 1500mm
• Dimensions (2 Ramps): 1500mm x 300mm
• Overall Dimensions: 1700mm x 2100mm
• Height (Weighing Area): 25mm
• Height (Sidebars) 65mm

LP7510C, LP7510C-B, LP7510SS & LP7510P (Integral Printer)

• Mild Steel or Stainless Steel Housing
• Bench / Wall Bracket
• Large 6 Digit 20mm High Display
• RS232 Output
• Date & Time
• Full Range Tare
• Ratio Counting Function
• Sample rate: 10 times/second
• Load cell sensitivity 1.5 3mV/V
• Operating Temperature & Humidity: 0-40 C & 85% RH
• Power Supply: Internal 6V rechargeable battery with 9V mains adaptor - (Supplied)
• Approx. 40 hours of use on a single charge
• Auto Power Off Function
• Dimensions: 200mm x 140mm x 80mm (WxHxD)
• With stand: 226mm x 210mm x 80mm (WxHxD)
• Thermal Receipt Printer option for hard copy of indicator read-out.
• Gross, Net, Tare, Time & Date Print out.

Optional & Upgrade Items

• Upgrade: LP7510P - Stainless Steel Indicator with Integral Printer.
• Optional: Weight Indicator Stand 300mm x250mm x 1000mm (Mild Steel Base)
• Optional: Trade Approved Platform
• Optional: ISO Calibration Certificate.

Please note: ISO 9001:2015 certificates are sent out via email and can take 2-3 days to be delivered after receipt of goods.

Pictures are for illustration purposes only.
