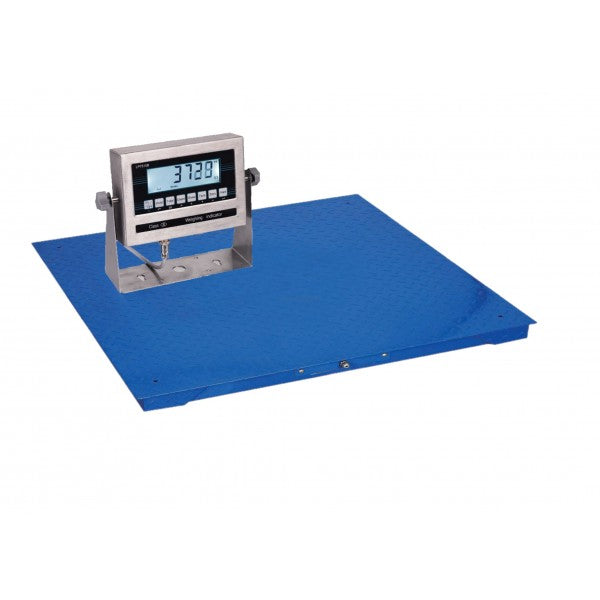

Platform Scale LP7620 with LP7510C Indicator 1200mm x 1200mm 1000kg - 5000kg

LP7620 Platform Scale with LP7510C Mild Steel Indicator (Fitted as standard)

The platform size is 1200mm x 1200mm and calibrated to any of the capacities below

• 1000kg x 0.2kg
• 2000kg x 0.5kg
• 3000kg x 1kg
• 5000kg x 2kg

The LP7510 indicator is the standard indicator that is included with the pallet scale bases, weigh beams and U-frame pallet weighers.

Fabricated in mild steel or stainless steel housing.

Please contact sales team for a quote if stainless steel is required.

FEATURES INCLUDE:

PLATFORM

• Mild steel platform scale.
• Platform Colour is BLUE
• Dimensions (Weighing Area): 1200mm x 1200mm
• Height (Weighing Area): 100mm

LP7510C, LP7510C-B, LP7510SS & LP7510P (INTEGRAL PRINTER)

• Mild Steel or Stainless Steel Housing
• Bench / Wall Bracket
• Large 6 Digit 20mm High Display
• RS232 Output
• Date & Time
• Full Range Tare
• Ratio Counting Function
• Sample rate: 10 times/second
• Load cell sensitivity 1.5 3mV/V
• Operating Temperature & Humidity: 0-40 C & 85% RH
• Power Supply: Internal 6V rechargeable battery with 9V mains adaptor - (Supplied)
• Approx. 40 hours of use on a single charge
• Auto Power Off Function
• Dimensions: 200mm x 140mm x 80mm (WxHxD)
• With stand: 226mm x 210mm x 80mm (WxHxD)
• Thermal Receipt Printer option for hard copy of indicator read-out.
• Gross, Net, Tare, Time & Date Print out.

OPTIONAL & UPGRADE ITEMS

• Upgrade: LP7510SS - Stainless Steel Indicator.
• Upgrade: LP7510P - Stainless Steel Indicator with Integral Printer.
• Optional: Ramp1200 - Mild Steel Platform Ramp 1200mm x 1200mm x 100mm
• Optional: Weight Indicator Stand 300mm x250mm x 1000mm
• Optional: Trade Approved Platform
• Optional: ISO Calibration Certificate.

Please note: ISO 9001:2015 certificates are sent out via email and can take 2-3 days to be delivered after receipt of goods.

Pictures are for illustration purposes only.
