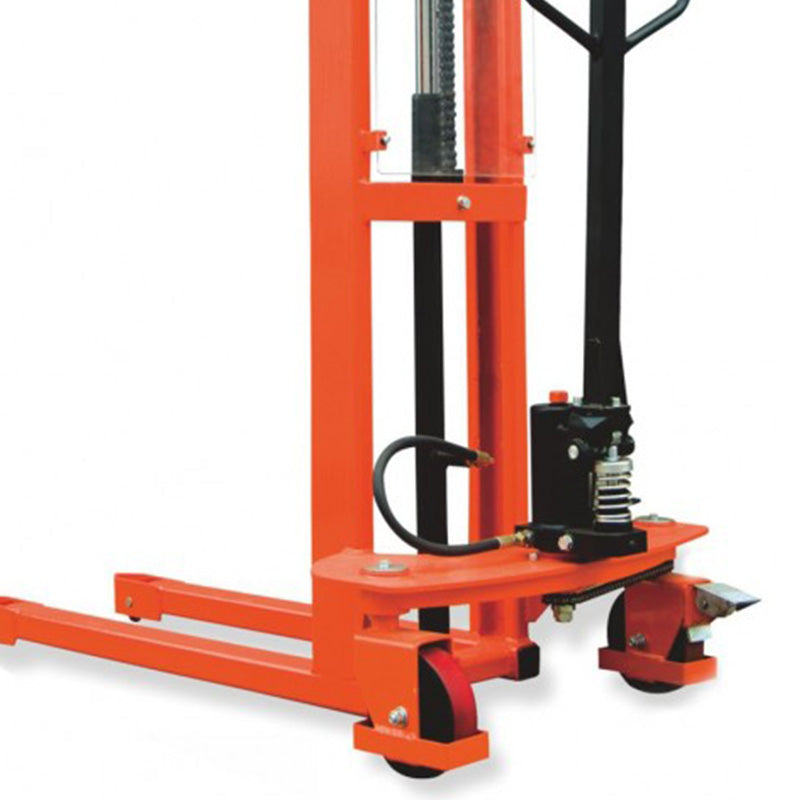

Standard Manual Hydraulic Stacker FC-1016 1.5M Lift 1000KG

The FC-1016 stacker is a great solution to the cumbersome task of moving, lifting, loading and unloading pallets. Offering an economical and efficient way of getting warehouse and yard loading tasks done, these are easily manoeuvrable and ideal in smaller spaces. These high quality pieces of equipment have a lift capacity of 1000kg and a lift height of 1.5m, making them super versatile and durable.

Suitable for EURO and open boarded pallets

• Capacity: 1000kg
• Wheel Size Front: 180mm x 50mm
• Load Wheel Size Rear: 80mm x 55mm
• Load Centre: 600mm
• Lowered Mast Height: 1965mm
• Free Lift: 1510mm
• Lift Height: 1510mm
• Wheelbase: 1075mm
• Fork Height Lowered: 90mm
• Overall Length: 1670mm
• Length to face of forks: 520mm
• Overall width: 765mm
• Fork dimensions: 55mm x 150mm x 1150mm
• Overall fork width: 520mm
• Turning Radius: 1405mm
• Weight: 220kg
