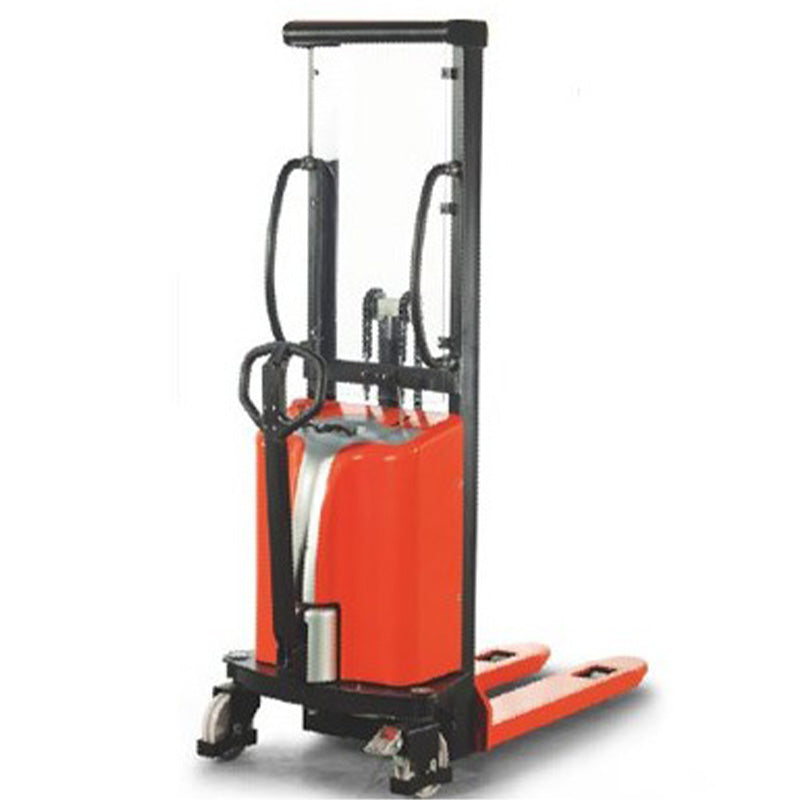

Standard Stacker SPM1025-ES Semi Electric 2.5M Lift 1000KG

A high quality, cost-effective solution for completing diverse stacking operations (loading capacity from 1000kg to 1500kg, optional lift height of 1600mm, 2500mm, 3000mm and 3500mm) and the loading and unloading of utility vehicles. The sturdy, reliable mast is made of rolled U-profile, while construction of the equipment uses hard chrome plated pistons. The lifting chain is adjustable, and the lift motor is a powerful 1.5KW.

Characteristics:

• Drive: Manual
• Type of operation: Pedestrian
• Load Capacity /rated load: 1000kg
• Load center distance: 600mm
• Wheelbase: 1160mm
• Lift 2500mm

Wheels Chassis:

• Wheels: Nylon/PU
• Wheel Size Front: 180mm × 50mm
• Wheel Size Rear: 74mm × 70mm
• Track Width Front: 658mm
• Track Width Rear: 390mm/490mm
